Mofi Tables/Speakers
Explore Mofi Tables/Speakers
Mofi Electronics has introduced a new line of analog components featuring turntables, phono stages, speakers and phono cartridges. These are from a company that makes the finest vinyl albums available today and with a long history. The new Andrew Jone speakers are now also out to great initial press.
SourcePoint 10 concentric loudspeaker
$3699.00 delivered
Shown above in black
10-inch Concentric Loudspeaker
The SourcePoint 10 is designed like a cost-no-object loudspeaker, a complete from the ground up approach, to deliver the highest sound quality and value.
Above in Walnut
- Ken Micallef, Stereophile Magazine
The heart of the SourcePoint 10 is the innovative Twin-Drive high-flux neodymium magnet system.
It is not enough to simply optimize the frequency response of the woofer and tweeter. It is also critically important to minimize distortion in the motor structure of the drive unit. If the motor has distortion, it will generate new frequencies outside of the original signal. We have been very deliberate with the design of the motor to reduce these distortions.
The Twin-Drive system creates a fully symmetrical magnetic field, eliminating flux modulation for extremely low intermodulation distortion (IMD). This technical achievement is an important part of why the SourcePoint 10 sounds so pure and accurate. No, it won’t power your time-traveling DeLorean, but it will deliver the performance you’ve been searching for.
FEATURES
• 10-inch concentric driver
• 1.25-inch wide roll soft dome tweeter
• 2-way vented box
• Satin Walnut or Satin Black Ash real wood veneer
• 5-way binding posts
• Magnetic grilles
ELECTRICAL SPECS
Frequency Response: 42Hz-30kHz
Nominal Impedance: 8 Ohms, 6.2 Ohms minimum
Sensitivity: 91dB/2.83V/1m
Crossover Frequency: 1.6kHz
Minimum Recommended Power: 30W
Max Power Input: 200W
Dimensions (WxHxD)
14.5" x 22.5" x 16.6" with grille
14.5" x 22.5" x 16" without grille
Weight: 46.2 lb each
SourcePoint 8 concentric loudspeaker
$2,999.00 delivered
SourcePoint 8
-
Eight-inch custom concentric driver with exclusive Twin-Drive high-flux magnet structure to optimize linearity.
-
1.25-inch soft dome tweeter with extended low and high-frequency response
-
Multi-faceted, sculpted baffle reduces diffraction and improves sound quality.
-
Cabinet made of 1.5-inch-thick baffle and 3/4-inch-thick MDF panels.
-
47Hz - 30kHz
-
11.4” x 18” x 13.2” (WxHXD), 27.9 lbs each
-
Walnut, Black Ash, or painted Satin White
"MoFi has produced an American made turntable that’s well engineered and built, looks great, and sounds sublime- and they brought it to market at a very reasonable price. I can see why it took so long to finally become available. The wait was well worth it." -Vinyl Me Please "Spending time with the MoFi Electronics MasterTracker reminded me again just how great high-output cartridges can sound." -PartTime Audiophile |
Master Phono
$5995.00
Peter Madnick designed state of the art phono stage with superb flexibility
The Master Phono Preamplifier has both current-mode and voltage-mode inputs. In Madnick's words, "This allows you to plug in a low-impedance cartridge without needing to fuss with cartridge loading." If none of the voltage input's 10 loading presets work with your cartridge, you can opt for the special RCA jacks that allow you to add your own resistance and capacitance.
- Three selectable inputs: Two Voltage inputs and One Current Source
- Single-ended RCA and Balanced XLR inputs and outputs
- Dual-chassis construction isolates power supply and audio circuits separately
- Switchable Gain 40db/50db/60db/70db
- 10 position loading adjustments, including "Custom" via RCA plug
- Stereo/mono switch, High pass filter switch
- Left and Right meters for output monitoring and calibration purposes
- Software upgradeable via USB to add new updates and features
- Includes Remote Control
MasterDeck turntable
$5995.00
The MasterDeck achieves precision playback in part with an optically regulated speed controller using a three-phase brushless DC drive motor, housed in an isolated container. Fine speed adjustments are available for 33, 45 and 78 RPM and are displayed on a four-digit display. The 1.75 inch thick platter is a high mass hybrid material constructed exclusively from Aluminum and Delrin. This platter sits atop an ultra-high quality Encapsulated Spiral Groove inverted bearing. Isolation from both environmental noise and feedback is accomplished by effectively floating the MasterDeck using custom Harmonic Resolution Systems (HRS) Isolation Feet. Finally, with respect to “functional” cosmetics, a solid wood frame, in either Walnut or Black Ash finish, is wrapped around a constrained-layer body of wood and aluminum to eliminate all resonances. A compelling feature of the MasterDeck is an “all new” Dual-pivot carbon-fiber 10 inch tonearm that offers the best balance of precision, control and friction-free tracking. This tonearm uses a removable headshell and allows for the optimization of virtually any cartridge by facilitating adjustable horizontal angle (azimuth), vertical tracking angle (VTA), overhang and anti-skate. As well, all internal tonearm wiring is provided by Cardas Audio.
MoFi Electronics MasterDeck Significant Design Features:
- 33.33 / 45 / 78 RPM belt drive turntable
- Unique and highly adjustable 10-inch hybrid tonearm design 1.75-inch aluminium and Delrin platter
- Four-digit display shows fine speed adjustment
- Cardas Audio internal arm wiring
- Solid wood frame available in black ash or walnut finish
- Custom Anti-Vibration feet designed by HRS
- Black constrained layer damped aluminum top
- Dimensions (w x d x h): 20 x 14 x 8” / 50.8 x 35.6 x 20.3 cm.
- Weight: 43 lbs. / 19.5 Kg.

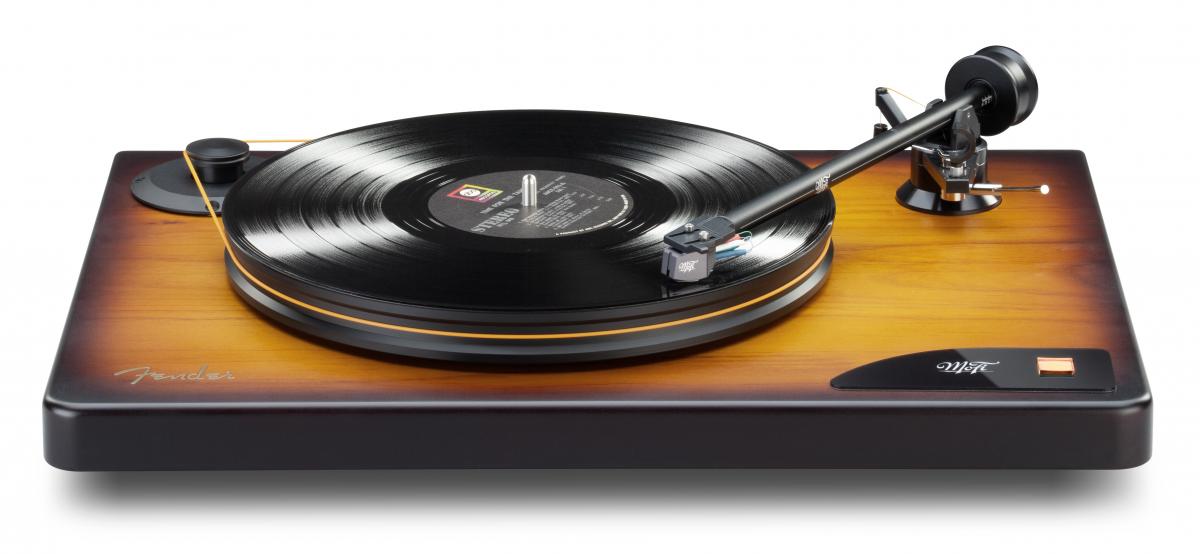

UltraDeck Turntable
$2,499.00 Sale $1499.00 SAVE $1000.00$2,799.00 with $499.00 factory factory mounted UltraTracker cartridge-Sale $1799.00 SAVE $1000.00
$2,999.00 with the $799.00 factory mounted MasterTracker cartridge-Sale $1999.00 SAVE $1000.00
$3,499.00 with the $1499.00 factory mounted Ultra MG MC moving coil cartridge-Sale $2,499.00 SAVE $500.00
"The Mofo UltraDeck is one of the most lucid, engaging, and natural sounding record players available for under $5000.00."
"HIGHLY RECOMMENDED"
The Absolute Soud review summed with:
The UltraDeck is a smartly conceived and finely honed design that’s already earning its place as an instant classic.
“This is as good as analog gets for $2,200.”
—TONEAudio, Exceptional Value Award
"[The MasterTracker is] the music-rendering equal of any high-output cartridge at any price."
–Stereophile
- 33-1/3 / 45.0 RPM belt drive turntable
- Custom design and manufactured in the USA
- 10-inch MoFi Ultra Tonearm
- 1.3-inch Delrin® platter
- Isolated 300 RPM AC synchronous motor
- Anti-Vibration feet designed by HRS
Deemed an "instant classic" by The Absolute Sound, UltraDeck+ immediately stands out via its super-sturdy, unshakable physicality that includes a 1.3-inch Delrin platter – 75 percent thicker than that on Mobile Fidelity's StudioDeck model – that delivers deep-black backgrounds and a fantastically low noise floor. Delrin is chosen due to its natural impedance match with vinyl. Speaking of being made for LPs: UltraDeck+'s 300RPM isolated AC synchronous motor offers excellent speed stability for stellar pitch accuracy and rhythmic drive. Better still, UltraDeck+'s constrained layer dampening build – comprised of three aluminum plates bonded to the MDF body – adds extra mass, eliminates coloration, and contributes to increased stability. It's just another way UltraDeck+ takes its purpose to the extreme.
Mobile Fidelity's engineering prowess extends to the custom-developed Ultra tonearm, a 10-inch straight aluminum gimbaled bearing design whose rigidity and tracking prowess translate into hyper-accurate information retrieval. Ultra tonearm also uses Cardas Audio wiring to maintain signal purity from the head shell leads all the way through the RCA connectors. Adjustable tracking force, VTA, azimuth, and anti-skate grant you limitless options for tweaks and adjustments. A hardened-steel inverted bearing system complete with sapphire materials provides UltraDeck+ wonderfully smooth, rotational stability while anti-vibration feet – co-developed with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation – further shield UltraDeck+ from disruptive resonances. Again, everything circles back to preserving the genuine sound locked in the grooves of your LPs. It's why Mobile Fidelity even outfits UltraDeck+ with high-quality gold-plated connectors shielded by a copper foil box to prevent airborne RF noise and, as a bonus, includes a removable, hinged dust cover to guard against debris when the 'table isn't spinning records.
The word “Ultra” is synonymous with Mobile Fidelity Sound Lab's philosophy. It represents their extreme pursuit of the highest level of reproduction of recorded sound—beyond the status quo—to provide music lovers with the experience of hearing the Original Master Recording in their home. Whether you're enjoying a standard LP or one of their UltraDisc One-Step limited-edition records, UltraDeck will deliver faithful playback of what's in the grooves.Custom-developed and manufactured in the USA, the 10-inch Ultra tonearm uses smooth, high-quality ball bearings for low friction in the vertical and horizontal plane so all you hear is what is in the grooves. Cardas Audio wiring maintains signal purity from the headshell leads all the way through to the high-quality, gold-plated RCA connectors.
The stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.
UltraDeck features Constrained layer Dampening. Three aluminum plates carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.
The Ultra Deck also features Anti-Vibration feet by HRS, a massive 1.3 inch 6.8 pound Deltin platter and hardened-steel inverted bearing system for smooth, quiet rotational stability.
SPECIFICATIONS
Motor: 300 RPM AC Synchronous
Speeds: 33 1/3 RPM, 45.0 RPM
Platter: 6.8 lb Delrin®
Wow & Flutter: 0.017% – 0.025%
Signal-To-Noise Ratio: 74dB
Power Supply Requirements: 120V 60Hz, 220-230V 50Hz, 100V 50Hz
Power Consumption: < 5W
Dimensions: 19.69" x 6" x 14.25"
Weight: 23.1 lb

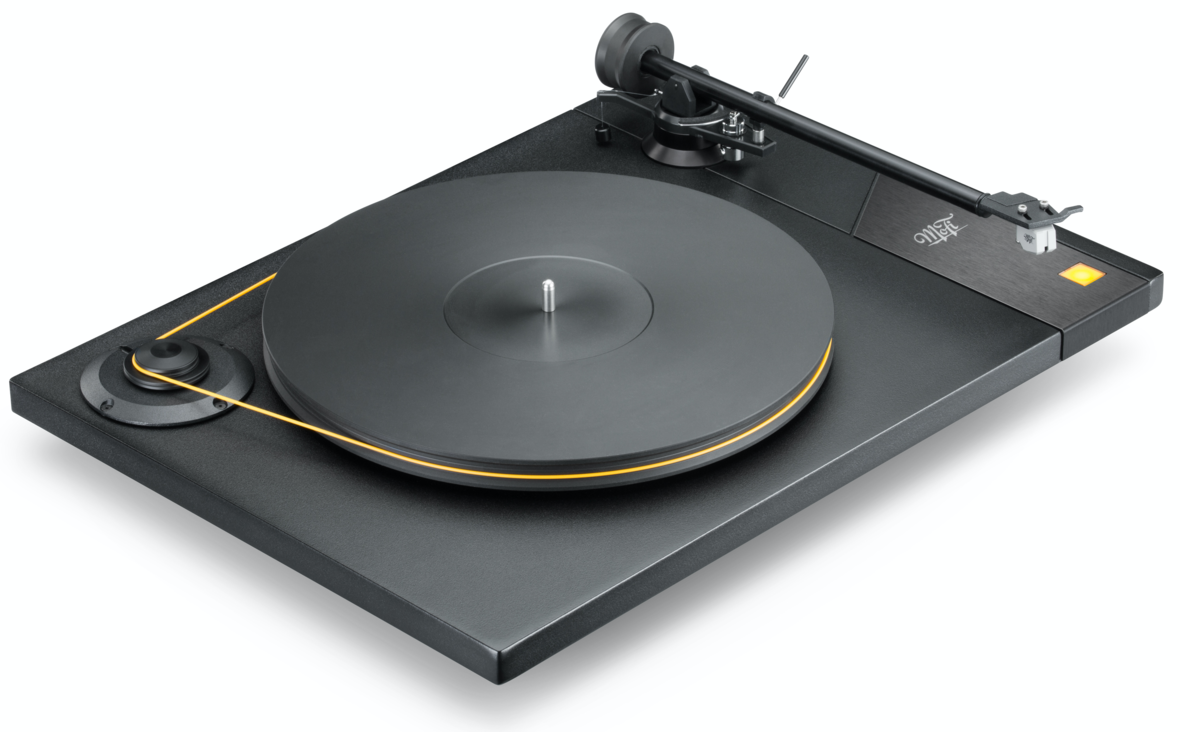

StudioDeck Turntable
$1999.00 with $799.00 factory pre-mounted MasterTracker cartridge Sale $1,399.00 delivered, Only 1 left"The $999 MoFi StudioDeck looks, sounds and feels terrific -- and it’s made in the US."
"The StudioDeck's general composure was assured, very clean, clear, and it just went about its business of playing LPs without any hitches. Lesser turntables accentuate LP surface noise clicks and pops, the StudioDeck did not."
"The StudioDeck's isolation from external knocks is above average, so my fist pounding on the shelf didn't disturb the turntable one bit."
"MoFi also sent along their $249, StudioPhono preamplifier. It easily sounded a lot better, clearer and more alive than our Rotel RA-1592 ($2,499,) integrated amplifier's built-in phono preamp."
See the entire review at: https://www.cnet.com/news/this-straight-up-audiophile-turntable-costs-less-than-you-think/#ftag=rss.audiophiliac.ftag
- 33-1/3 and 45.0 RPM belt drive turntable
- Custom design and manufactured in the USA
- 10-inch MoFi Studio Tonearm
- 3/4-inch Delrin® platter
- Isolated 300 RPM AC synchronous motor
- Anti-Vibration feet designed by HRS
Custom developed and manufactured in the USA, the 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balanced of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart's delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.
The 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.
StudioDeck features CONSTRAINED LAYER DAMPENING. An aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.
The Ultra Deck also features Anti-Vibration feet by HRS, a 3/4 inch 3.8 pound Deltin platter and hardened-steel inverted bearing system for smooth, quiet rotational stability.
SPECIFICATIONS
Motor: 300 RPM AC Synchronous
Speeds: 33 1/3 RPM, 45.0 RPM
Platter: 3.88 lb Delrin®
Wow & Flutter: 0.017% – 0.025%
Signal-To-Noise Ratio: 72dB
Power Supply Requirements: 120V 60Hz, 220-230V 50Hz, 100V 50Hz
Power Consumption: < 5W
Dimensions: 19.69" x 5.375" x 14.25"
Weight: 19.1 lb
UltraPhono Phonostage with Class A headphone amplifier
$499.00- Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
- Adjustable loading 75Ω - 47kΩ
- Class A headphone amplifier
- Switchable Mono mode
- Subsonic filter
- External power supply
ADJUSTABLE GAIN AND LOADING
With selectable gain and loading, you will be able to tailor UltraPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.
CLASS-A HEADPHONE AMPLIFIER
UltraPhono includes a powerful Class A headphone amplifier perfect for quiet nights when you want to keep the records spinning in private. And with a 31-step volume control built into the unit, all you need to do is directly plug-in your headphones and turn it up! It's the easiest way to achieve high-fidelity vinyl playback without speakers and electronics.

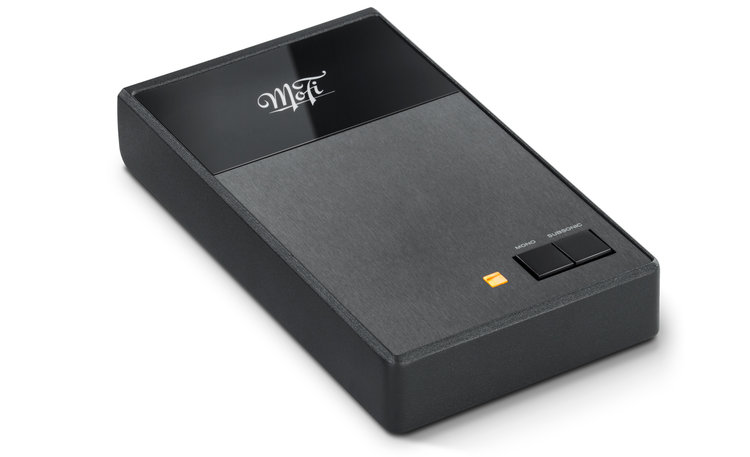

StudioPhono Phonostage
$349.00- Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
- Adjustable loading 75Ω - 47kΩ
- Switchable Mono mode
- Subsonic filter
- External power supply
Two selectable toggle buttons on the top of the unit can engage Mono or Subsonic filter mode. If you're a fan of mono recordings, vintage or reissues like the Beatles in Mono box set or the Mobile Fidelity Sound Lab Bob Dylan Series, the Mono mode will come as a revelation. It will improve image stability and generate richer tone.
ADJUSTABLE GAIN AND LOADING
With selectable gain and loading, you will be able to tailor UltraPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.
Cartridges
MasterTracker Cartridge
$799.00
- V-Twin dual-magnet generator
- Micro-Line stylus and tapered cantilever
- Well-damped billet aluminum body
- Ohno continuous cast copper coils
- 3mV output
UltraTracker Cartridge
$499.00
- V-Twin dual-magnet generator
- Nude Elliptical stylus
- Well-damped billet aluminum body
- 3.5mV output
StudioTracker Cartridge
$199.00
- V-Twin dual-magnet generator
- Elliptical stylus
- Polymer body
- 3.5mV output
